MicorStick 200
- 200 Amp DC welding machines with inverter technology
- Machines operate on 380V 3ph.
- Can be used with a generator
- Cable length can be extended up to 200m from the power source
- The machine is designed to withstand drops from a height of up to 80cm
- Lightweight: 6.3kg
- Argon welding capability
- CEL (cellulose) wire welding capability, used for pipe welding
- Features: Hot start, anti-stick, arc force regulation
- The machine is equipped with a digital display showing current and a list of error codes
- 3-year warranty against manufacturing defects
MicorStick160 & 180
- 160 and 180 Amp DC Welding Machines with Inverter Technology
- Machines operate on 220V 1ph
- Can be used with a generator or battery.
- Cable length can be extended up to 200m from the power source
- The machine is designed to withstand impacts from a height of up to 80cm
- Lightweight: 4.9kg (160 Amp machine) and 5.8kg (180 Amp machine)
- Argon welding capability
- Pulse welding capability up to a frequency of 5000 Hz (180 machine
- CEL (cellulose) wire welding capability, used for pipe welding
- Features: Hot start, anti-stick, arc force regulation
- The machine is equipped with a fault indicator light and overload protection
- - 3-year warranty against manufacturing defects
X350
- 350 Amp DC welding machines with inverter technology
- Machines operate on 380V 3ph
- Generator compatible
- Voltage drop tolerance up to 40%
- Machine designed to withstand drops from a height of up to 60 cm.
- Lightweight 18.5 kg
- Argon welding capability
- Semi-automatic CV welding capability
- CEL wire welding capability (cellulose wire used for pipe welding)
- Hot start, anti-stick, arc force regulation features
- Highest protection rating for a welding machine: IP34
- Machine equipped with a digital display showing current and error codes
- Wireless remote control for adjusting current settings
- 3-year warranty against manufacturing defects
V series
- The machine operates with Inverter technology
- Maximum duty cycle for an argon welding machine is 60% at maximum loa
- Digital display showing amperage and fault codes
- Available in different capacities: 500/400/300/270/240 Am
- AC/DC welding capability for all metals such as aluminum, stainless steel, iron, copper, and others. HF ignition feature
Orbital tube to sheet
- Pipe welding machines for heat exchangers and boilers
- Welds pipes up to 80 mm in diameter
- Option to add wire feed for welding
- Can hold a 1 kg wire spoo
- Mandrel to secure the welding head inside the pipe for optimal welding results

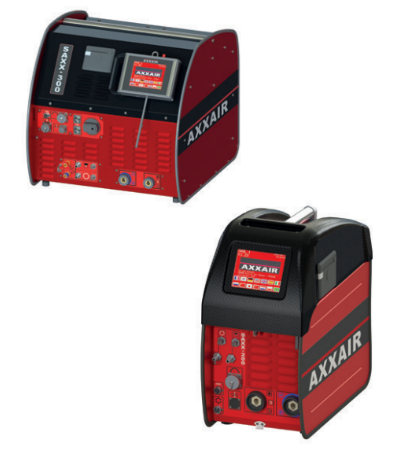

Orbital welding
- Stainless steel pipe welding machines for dairy, pharmaceutical, and beverage factorie
- Features a touch screen for ease of use
- Includes external USB flash memory for saving welding data and viewing it on a computer.
- Stores up to 200 programs
- Printer for printing data for each weld
Available in more than one model:
1 – 200 Amp
2 – 210 Amp
3 – 300 Am

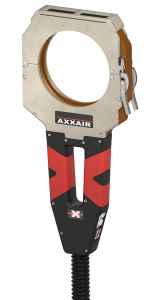

Closed head
- Pipe welding head up to a diameter of 115 mm
- 8-meter head for reaching high places
- Includes a remote control for on/off operation and argon needle movement.
- Two argon needle positions in two different sizes: 2.4 mm and 1.6 mm.
- An opening window allows for adjusting the argon needle position.
Available in multiple models:
1- 115 SATFX: Diameters from 12 mm to 115 mm.
2- 75 SATFX: Diameters from 6 mm to 77 mm.
3- 52 SATFX: Diameters from 6 mm to 52 mm

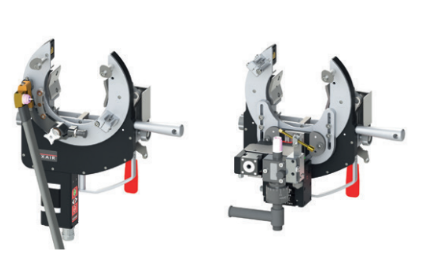

Open head
- Pipe welding head up to a diameter of 220 mm
- Option to add an external cold wire feeder
- Option to add OSC & AVC wire movement contro
- Ability to weld pipes up to 12.7 mm thick
Available in more than one model:
40-SATO: From 10 mm to 40 mm diameter.
80-SATO: From 19 mm to 80 mm diameter.
115-SATO: From 10 mm to 115 mm diameter.
170-SATO: From 25 mm to 170 mm diameter.
220-SATO: From 38 mm to 220 mm diameter
KST 110
- Capacitor discharge screw welding machine up to a diameter of 10 mm
- High-efficiency capacitors with a rating of 99,000 microfarads
- Digital display showing the appropriate voltage for each pin
- Suitable for welding all metals
- Used in the manufacture of electrical panels, metal furniture, and kitchen equipment
- Operates on 220 volts
- Lightweight: 11 kg
Inverter
- Nail welding machines operate with Inverter technology to reduce weight and increase efficiency
- Digital current control and welding time adjustmen
- Digital display for current and time control and program storage
- Equipped with a fault code
- Drawn arc & short cycle welding capability
– Capable of welding various types of nails:
(and others) shear stud, threaded stud, boiler stu

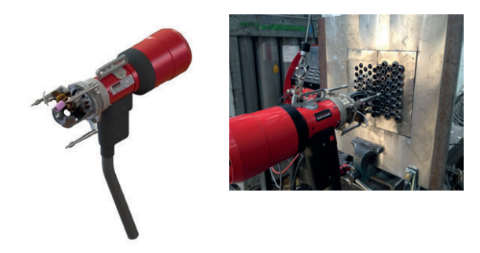

Tube to tube sheet welding
- German-made, with diameters up to 78 mm and the ability to weld
- wired or wireless automatic welding
- Welding program storage capability
- 300 Amp welding machine with 100% load capacity at maximum current
- Welding needle depth control via motor in some models
- - The machine can be used to weld air coolers with a dedicated welding torch
Elotop + Series
- Nail welding machines operate with Thyristor bridge technology
- Digital current control and welding time adjustment
- Digital display for current and welding time contro
- Equipped with a fault code list
- Capable of welding nails with a diameter of up to 25 mm
- Capable of Drawn arc and short cycle welding
- Process control feature to maintain weld quality and ensure that welding parameters do not exceed acceptable limits
- Equipped with flash memory to record welding data and display it on a computer
- - Capable of welding various types of nails: (shear stud, threaded stud, boiler stud, etc.)
IQS
- The machine operates with DIGITAL INVERTER technology, providing digital control over all welding parameters
- The machine is equipped with a TOUCH SCREEN for easy control of welding parameters
- The machine is equipped with Wi-Fi for internet connectivity
- The machine operates on a PULSE system
- SPEED PULSE XT program to increase welding speed by 48% PULSE
- SPEED TWIN program for a perfectly shaped and speed-controlled weld line
- SPEED COLD program for welding thin thicknesses
- SPEED ROOT program for creating weld lines
- SPEED ARC program to increase welding speed by 30%
- SPEED UP program for upward welding
- The machine is equipped with pre-programmed synergistic lines
- For welding all types of metals (iron, aluminum, stainless steel, copper, duplex, etc.)
- With the possibility of adding programs for special alloys
- Equipped with RCS technology to reduce wear during welding and achieve a perfect weld
- Welding circuit calibration capability
- Available in different capacities (320/400 amps
- 3-year warranty against manufacturing defects
MicorMig Mobile
- The machine is equipped with a digital microprocessor for extremely precise control of welding parameters
- Crater fill function to address gap problems at the weld end
- Dynamic control function to adjust the smoothness and roughness of the electric arc
- Arc length correction function and independent wire speed control
- The machine comes with an unlimited number of pre-loaded welding programs for welding steel wire and flexible cord
- Ability to convert the machine to PULSE mode
- Option to add Micro Twin Pulse technology for high-quality welding results and control over the weld line shape
- Ability to store up to 100 programs (Control Pro)
- Available in different power ratings (300-350 amps)
- 3-year warranty against manufacturing defects
– The machine can be updated with an NFC card to add new features such as:
1 – Adding programs for welding aluminum (Almg and Alsi).
2 – Adding programs for welding stainless steel (307, 308, and 316).
3 – Adding programs for brazing copper (Cussi and Cu).
4 – Adding a speed-up welding program.
5 – Adding a speed arc program to increase productivity by 30%
MicorMig
- The machine is equipped with a digital microprocessor for extremely precise control of welding parameters
- Crater fill function to address gap problems at the weld end
- Dynamic control function to adjust the smoothness and roughness of the electric arc
- Arc length correction function and separate wire speed contro
- The machine comes with an unlimited number of pre-loaded welding programs for welding steel wire and flexible cord
- Ability to convert the machine to PULSE mode
- Option to add Micro Twin Pulse for high-quality welding results and control over the weld line shape
- Ability to store up to 100 programs (Control Pro)
- Ability to perform TIG argon and MMA electric welding
- Available in different power ratings (300, 350, 400, and 500 amps)
- 3-year warranty against manufacturing defects
– The machine can be updated with an NFC card to add new features such as:
1 – Adding programs for welding aluminum (Almg and Alsi).
2 – Adding programs for welding stainless steel (307, 308, and 316).
3 – Adding programs for brazing copper (Cussi and Cu).
4 – Adding a speed-up welding program.
5 – Adding a speed arc program to increase productivity by 30%
