ID mount
- - The most powerful machine for chamfering pipes up to 27 inches in diameter
- Chamfering capability up to 36 mm thic
- Machine can be mounted on the inner wall of the pipe
- Chamfering capability for different pipe sizes
- Pipe surface leveling capability
- Used in heat exchanger maintenance
- Elbow chamfering attachment can be added
– Can operate with more than one motor:
1 – Electric motor
2 – Air motor
3 – Hydraulic moto
OD mount
- The easiest and fastest pipe chamfering machine
- Easy installation on the outside of the pipe
- Works up to a diameter of 5 inche
- The machine can be configured for chamfering at different degrees
- Maximum thickness 25 mm depending on the machine mode
- Ability to level the pipe surface
- Ability to chamfer irregularly shaped pipes such as Omega Tubes
– Can operate with more than one motor:
1 – Air motor.
2 – Electric moto

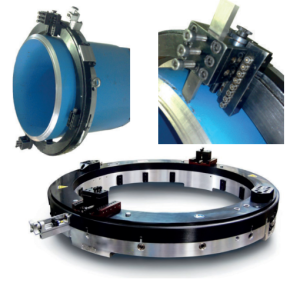

DLW cold cutting and beveling
- Cold pipe cutting and chamfering machines manufactured by the German company DWT
- The machine body is made of aluminum to ensure light weight
- Quick clamp for easy and quick machine installation
- Designed to work up to 57-inch diameters and up to 100 mm thick
- Automatic feeding equipped with
- High level of protection for the machine operator thanks to the Safety guard
- The ability to create different degrees of pipe chamfering and prepare them for welding
- Counterbore functionality
- The possibility of leveling the flange facing surface
- - Ability to cut all types of metal pipes: - (Duplex / Hastelloy / Superduplex / Stainless steel / P91/ Carbon steel)
– It can be used with more than one type of motor: –
1 – Hydraulic motor 10 kw or 13 kw.
2 – Air motor 3 kw or 1.7kw
3 -servo motor equipped 1.5 kw or 3 kw with an NC
